Architecture

Simplesat’s API is modeled after the Composer library from PHP.

For a good overview of the public API of the entire system, you should look at the Scenario, upon which all of our functional testing is based. The Scenario class shows how to build PackageMetadata instances from strings, use them to create a Repository, Pool and Request and pass them to a DependencySolver for resolution.

That said, pictures help. Let’s look at how data flows through the object hierarchy. We’ll use the following symbols to indicate singular objects and plural collections of objects.

Requests

The purpose of the simplesat library as a whole is to produce a valid assignment of package states (installed or not) that satisfy some particular set of constraints. This is expressed as a Transaction that is to be applied to the “installed” repository. The Request object is our vehicle for communicating these constraints to the solver.

At its core, a Request is a collection of actions such as “install” and Requirement objects describing ranges, such as numpy >= 1.8.1, which together form Job rules. The Request can have any number of such jobs, all of which must be satisfiable simultaneously. If conflicting jobs are given, then the solver will fail with a simplesat.errors.SatisifiabilityError.

Constraint Modifiers

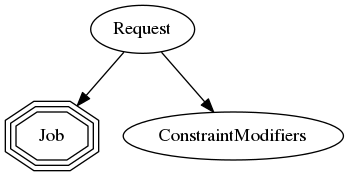

Additionally, one may attach ConstraintModifiers to the Request. These are used to modify the constraints of packages during the search for a solution.

These constraints are not applied to the jobs themselves, only to their dependencies. For example, if one were to create an install job for pandas < 0.17, while at the same time specifying a constraint modifier that allows any version of pandas to satisfy any constraint, the modifier should not be applied. We assume that any constraint directly associated with a Job is explicit and intentional.

Note that Request objects do not carry any direct information about packages. They merely describes constraints that any solution of packages states must satisfy.

Package Hierarchy

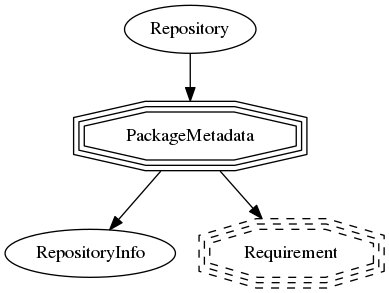

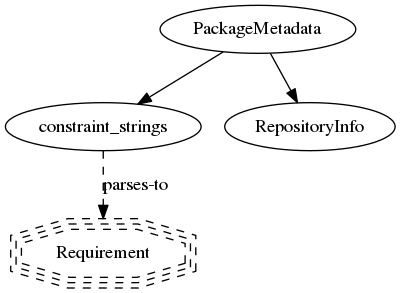

A RepositoryPackageMetadata is the basic object describing a software package that we might want to install. It has attached to it a collection of strings describing the packages upon which it depends, referred to as installed_requires, as those with which it conflicts. To avoid paying the cost of parsing our entire universe of packages for every request, these attached constraints are not parsed into Requirement objects until they are passed to the Pool later on. We’ll show them like this from now on to make it clear that they don’t exist until needed.

RepositoryInfo

A package object also has a RepositoryInfo attached to it, which is not currently used for solving, but provides information about the source of the package.

For testing or interactive exploration, these can be created via the PrettyPackageStringParser:

from okonomiyaki.versions import EnpkgVersion
ps = PrettyPackageStringParser(EnpkgVersion.from_string)
package = ps.parse_to_package(
    'foo 1.8.2; install_requires (bar ^= 3.0.0, baz == 1.2.3-4)
    '; conflicts (quux ^= 2.1.2)')

Repository

A Repository is made out of many of these such packages.

and can be created from them like so:

repo = Repository(iter_of_packages)
repo.add_package(additional_package)

Pool

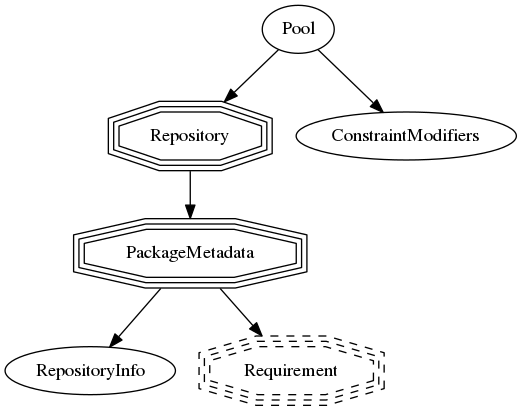

The Repository class does not support any kind of complicated querying. When it is time to identify packages according to constraints such as numpy >= 1.7.2, we must create a Pool. A Pool contains many such Repository objects and exposes an API to query them for packages.

The ConstraintModifiers<simplesat.constraints.ConstraintModifiers object is also attached to the Pool. It is used to modify incoming Requirement objects before using them to query for matching packages. This happens implicitly in the Pool.what_provides() method. The result of such modification can be inspected directly by calling Pool.modify_requirement(), which is used internally. The Pool is used like so:

repository = Repository(packages)
requirement = InstallRequirement._from_string("numpy ^= 1.8.1")
pool = Pool([repository], modifiers=ConstraintModifiers())
package_metadata_instances = pool.what_provides(requirement)

# These are not modified. Used for handling e.g. jobs.
more_instances = pool.what_provides(requirement, modify=False)

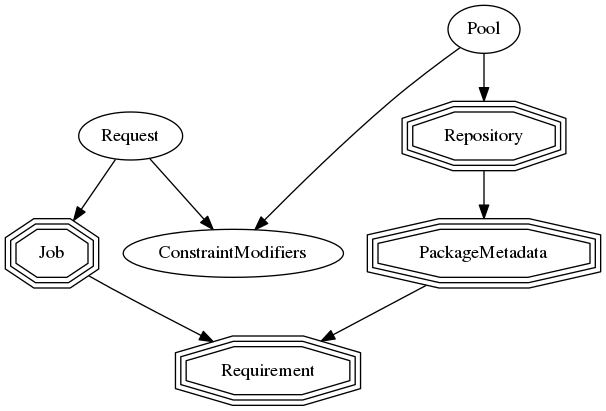

We now have a complete picture describing the organization of package data.

MiniSAT Engine

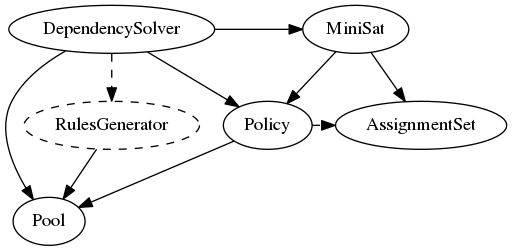

When it comes time to process a Request and find a suitable set of package assignments, we must create a DependencySolver. This in turn will initialize four pieces that together work to resolve the request.

• The first is the Pool, which we’ve already seen.
• The Pool is passed along with the Request to a RulesGenerator, which generates an appropriate set of conjunctive normal form (CNF) clauses describing the problem.
• Next is the Policy, which determines the order in which new package assignments are tried. The simplest possible Policy could suggest unassigned packages in arbitrary order, but typically we will want to do something more sophisticated.
• Lastly, we create a MiniSat object and feed it the rules from the RulesGenerator and the Policy to help make suggestions when it gets stuck. This is the core SAT solving engine. It is responsible for exploring the search space and returning an AssignmentSet that satisfies the clauses.

As the MiniSat explores the search space, it will update the AssignmentSet. When it reaches a point where it must make a guess to continue it will ask the Policy for a new package to try. The Policy looks at the AssignmentSet and Pool to choose a suitable candidate. This continues until either the MiniSat finds a solution or determines that the problem is unsatisifiable.

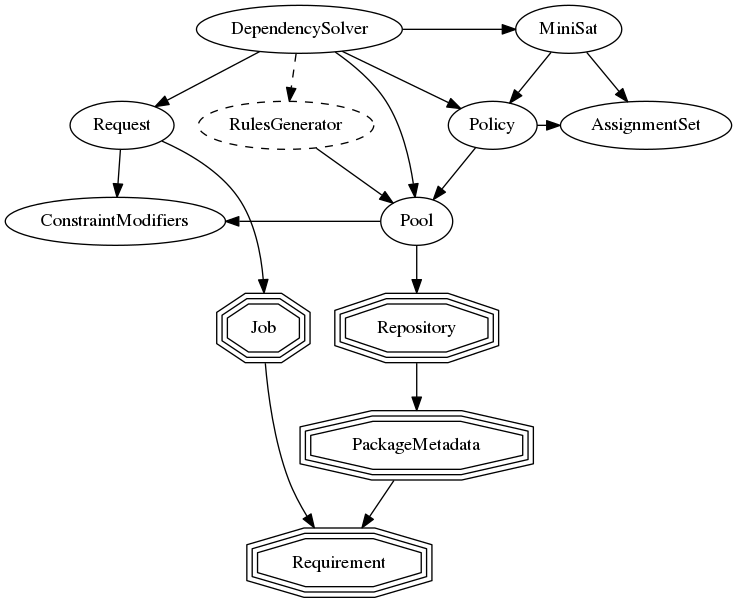

The entire system looks like this.
